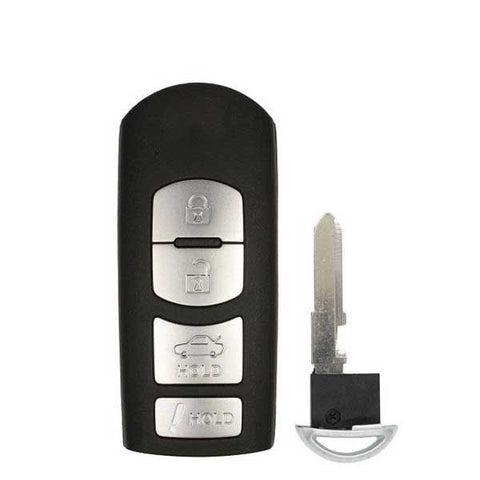

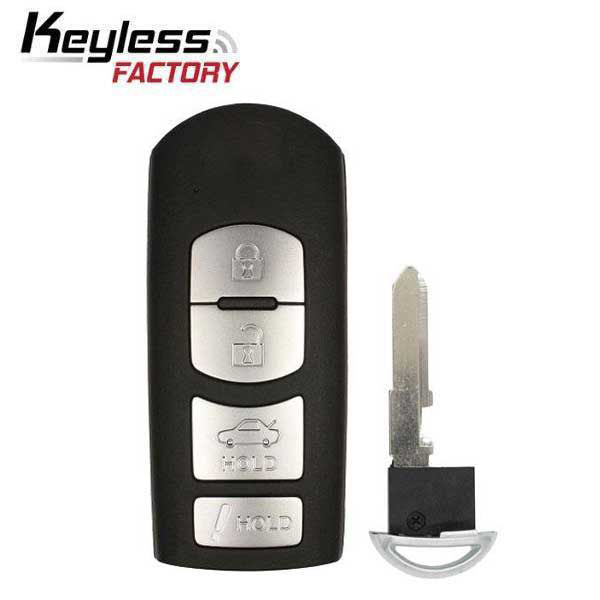

2018-2019 Mazda / 4-Button Smart Key / PN: GJY9-67-5DY / WAZSKE13D02

Description

Compatible with the following:

• 2018 – 2019  Mazda 6
• 2018 – 2019 Mazda 3
• 2018 – 2019 Mazda Miata MX-5

NOTE: There are some instructions when using this remote

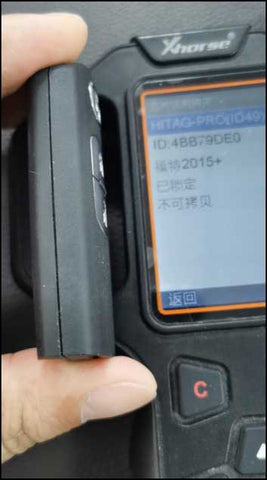

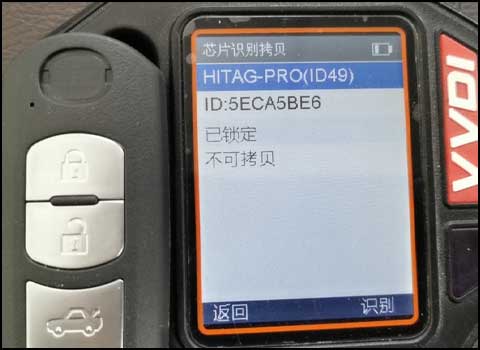

For Chip Testing with a Key Tool hold the back portion of the remote over the reading space to get the best chip read

Good

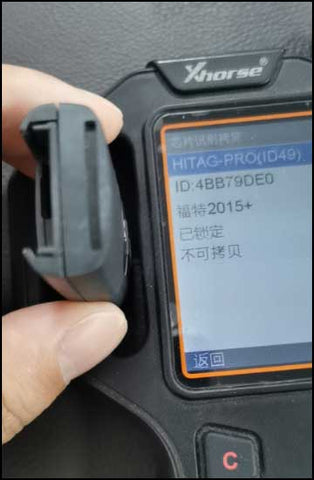

Bad(Below)

When programming this key

This key is unlocked. So you can program it unlimited amount of times.

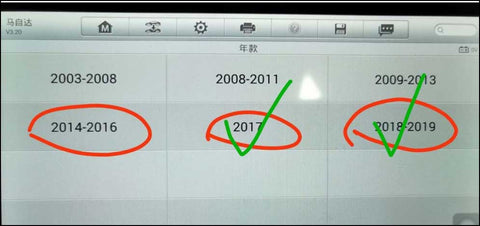

This key is old version 13D01, but it supports 13D02. On your programmer please choose newer year models. See photo, please choose from the two year-models marked green.

Note: Different devices may be a look little different or have different ranges , but please choose newer year-models

If there is notice “Failure” once you enter the programming mode, that means you enter wrong programming mode, please try others.

For the models after 2016, you need to wait about 7 minutes after you enter programming mode, then you can do programming procedure.

Additional information

Compatibility
